Alpha and Outback Energy

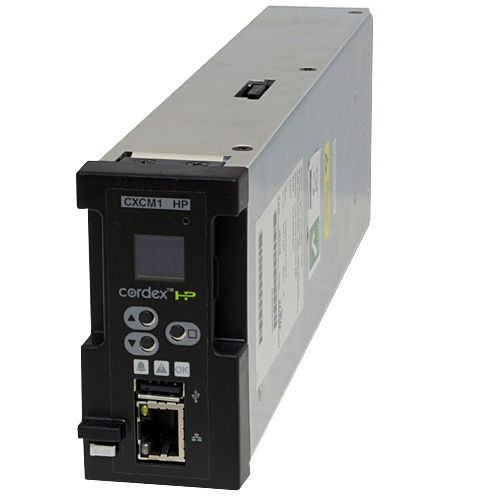

Cordex™CXCM1 HP controllers bring advanced HP monitoring technology to the Cordex1.2kW rectifier platform while the CXCi HP to the Cordex 250, 400 and 650W systems. The compact controller is an option and includes the complete CXC HP feature set and hardware performance.

The modular CXCM1 HP controller includes a local USB port for local upgrades of software aswell as full backup and restore capabilities. The local OLED display also provides new features to the platform such as IPv4/IPv6 address viewing and the ability to display system signals for all energy systems connected to the controller.

The CXCM1HP and CXCi HP provide the same features as the CXC HP controller as well as the same common GUI web interface. The CXC HP controller family offers many advanced features such as: customizable data logs and performance monitoring, advanced equation editing for faultmanagement and automation, management of multiple energy systems, and many others.

The CXCM1HP and CXCi HP I/O feature set can be easily expanded with the addition CXC HPADIO series peripherals to accommodate future needs as well as support sitemonitoring applications. CXC HP platforms ensure effortless operation and management to satisfy  the most demanding energy system applications.

Key Features

•       Advanced next-generation control and monitoring platform for Alpha’s Cordex productfamily

•       Integrated USB host for local firmware upgrades, configuration updates and systembackup/restoration

•       Seamless integration of multiple energy systems allowing comprehensive management, monitoring  and control

•       Integrated OLED display with numerous features including local monitoring and configuration management

•       CXCM1HP for 1.2kW - Part number : 0180054-002

CXCi HP for250, 400 and 650W – Part number : 0180056-001
